Open Labs introduced SoundSlate – the ultimate virtual instrument player and hardware DAW for your keyboard workstation or MIDI controller, contained in a sexy 1U rackmountable case.

SoundSlate redefines music production and performance by incorporating Open Labs‘ music operating environment including the critically acclaimed virtual instrument host Riff, 8000+ of sounds and effects, a robust audio i/o, and a powerful computer core running Windows XP into a 1U-ultra compact case that packs a punch.

Technical specifications:

CPU
Intel® Core2 Duo ® (2.8GHz)

Memory
2 GB (upgradeable to 4GB)

Storage
500 Gigabyte (upgradeable to 2TB)

Drive
Slimline CD/DVD Burner

Connection
(8) USB 2.0 ports
(1) Gigabit (10/100/1000) Ethernet port
(2) DVI Video ports (1 DVI-I, 1 DVI-D)
(1) E-SATA port

Audio
Sample Rates: 44.1, 48, 96, 192kHz from internal crystal or externally supplied clock (no sample rate conversion)
Bit Depths: 24-bit I/O, 32-bit processing
E-MU E-DSP™ 32-bit DSP with 67-bit accumulator (double precision w/ 3 headroom bits)
Hardware-accelerated, 32-channel mixing, and multi-effects processing
Zero-latency direct hardware monitoring w/effects
ASIO 2.0, WDM/MME/DirectSound Drivers
EDI (E-MU Digital Interface) proprietary 64-channel audio link over CAT-5 cable
Anti-Pop speaker protection minimizes noise during power on/off
Ultra-low jitter, clock subsystem: < 1 ns in PLL mode (44.1kHz, Opt. S/PDIF Sync)

Analog Line Inputs (2)
Type: servo-balanced, DC-coupled, low-noise input circuitry
A/D converter: AK5394A
Level (software selectable):
- Professional: +4dBu nominal, 20dBu max (balanced)
- Consumer: -10dBV nominal, 6dBV max (unbalanced)
Frequency Response (20Hz – 20kHz): +/- .05dB
Dynamic Range (1kHz, A-weighted): 120dB
Signal-to-Noise Ratio (A-weighted): 120dB
THD+N (1kHz at -1dBFS): -110dB (.0003%)
Stereo Crosstalk (1kHz at -1dBFS): < -115dB

Analog Line Outputs (2)
Type: Balanced, low-noise, 3-pole low-pass differential filter
D/A converter: CS4398
Level (software selectable):
- Professional: +4dBu nominal, 20dBu max (balanced)
- Consumer: -10dBV nominal, 6dBV max (unbalanced)
Frequency Response (20Hz – 20kHz): + 0.0/-.35dB,
Dynamic Range (1kHz, A-weighted): 120dB
Signal-to-Noise Ratio (A-weighted): 120dB
THD+N (1kHz at -1dBFS): -105dB (.0006%)
Stereo Crosstalk (1kHz at -1dBFS): < -115dB

Digital I/O
S/PDIF:
- 2 in/2 out coaxial (transformer coupled)
- 2 in/2 out optical (software switched at ADAT)
- AES/EBU or S/PDIF format (software selectable)
ADAT:
- 8 channels, 24-bit @ 44.1/48kHz
- 4 channels, 24-bit @ 96kHz (S-MUX compatible)
- 2 channels, 24-bit @ 192kHz
MIDI:
- 1 in, 1 out

Synchronization
Internal crystal sync at 44.1, 48, 96, 192kHz
External sample rate sync via
- ADAT (44.1 – 192kHz)
- S/PDIF (opt. or coax 44.1 – 96kHz)

Power Supply
250 Watt Power Supply, Whisper Quiet Cooling Fans (Internal Chassis, Processor & Power Supply)

Dimensions:
19”(W) X 12”(D) X 1U(H)

More information: Open Labs

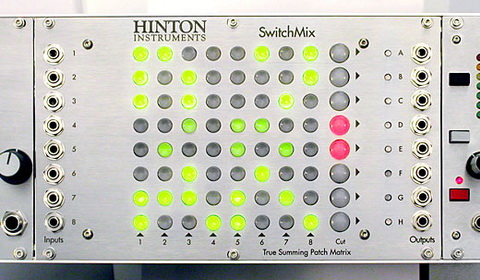

Hinton Instruments has introduced their latest product – the SwitchMix.

It is actually a compact switched routing matrix for both audio and dc coupled control voltages. According to Hinton, the SwitchMix offers “all the advantages of pin matrices without the problems.”

SwitchMix may have balanced or unbalanced compatible inputs and outputs, extending its use beyond synthesizer patching to other audio routing applications including multitrack and effects routing and headphone mixes. The balanced inputs make it suitable for interfacing DAW sound cards into a synthesizer for Silent Way and Volta users.

Two Eurorack versions of the SMX8 are available, with or without front panel jacks. Rear connections are via DB25 sockets conforming to the Tascam balanced analogue pinout. The SMX8EJ (shown) has front panel 3.5mm unbalanced jacks for synthesizer connections and occupies 42HP of Eurorack space. The SMX8EB has balanced Bantam/TT jacks. Other combinations and custom normalling are possible.

Custom build options are available. Prices start from £399, EC orders received before 1st January 2010 will be charged with 15% VAT.

More information about the product: Hinton Instruments
